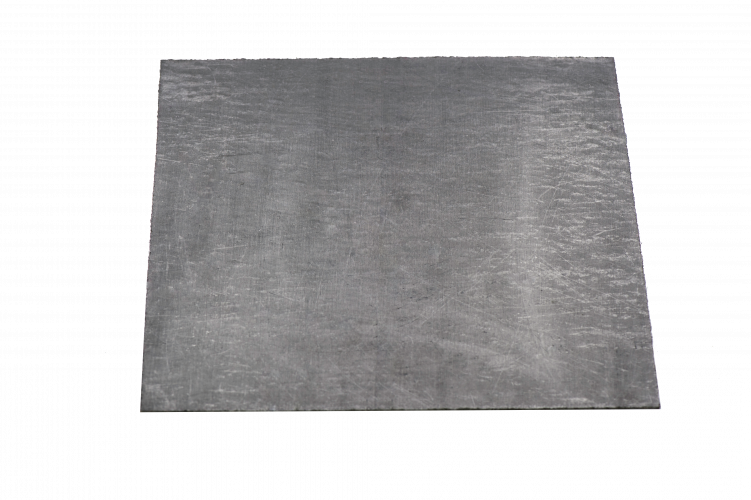

Phelps Compressed Gasket Sheet

Style 7011 - Steel Wire Reinforced Compressed Aramid With Nitrile Binder

Phelps Style 7011 is a dense wire reinforced Compressed Gasket Sheet with an Aramid Fiber Blend and has a Nitrile rubber binder. This sheet has a graphite coating on both sides. Recommended for super heated steam, thermal cycling, boilers, heat exchangers, gases, fuels, oils, and refrigerants. Its high tensile strength and excellent resistance to hot creep relaxation at elevated stress loads makes this gasket material unique. Style 7011 is an ideal high performance service gasket material withstanding higher than normal pressures.

For assistance chosing the right material for your application please call us @ 1-800-876-SEAL, or add notes after clicking on "Request a Quote"
Phelps Style 7011 Sheet - Compressed Steel Wire Reinforced Aramid Fibre Blend With Buna-N Nitrile Binder
CUSTOMIZE AND SEND REQUEST
pH
2-12
Pressure
2200 PSI
Temperature
1000° Maximum | 700°Continuous | 600° Steam
Composition
Fiber: Aramid Blend | Binder: Nitrile
Applications

An ideal high performance service gasket material for higher than normal pressures
Super heated steam, thermal cycling, boilers, heat exchangers, gases, fuels, oils, and refrigerant
Resistance to hot creep relaxation at elevated stress loads makes this gasket material unique

PXT Values
For 1/16" Thickness: 700,000 | For 3/32" Thickness: 360,000
Specifications

ASTM F 104 (Tests 1/32" Thick)

F 38 B Creep Relaxation
22 Hrs @ 212°F (100°C): 17.9%
22 Hrs @ 392°F (200°C): 28.4%

F 146 Thickness Increase
Oil #3, 5 Hrs @ 300°F: < 5%
Fuel B, 5 Hrs @ 73°F: < 5%

F 36 A
Compressibility 5000 PSI Gasket Load: 8.5% +/- 1.5%
Recovery: 55%

DIN 3535 Part 6 Gas Leak Rate
Nitrogen @ 580 PSI/Gasket Load 4640 PSI: .01 cc/min

DIN 52913 Stress Relaxation @ 7250 PSI
16 Hrs @ 347°F: > 5075 PSI (35 MPA)
16 Hrs @ 572°F: > 4350 PSI (30 MPA)

Hot Compression Test (1/16" Thickness Used For Testing)
7250 PSI @ 572°F (300°C): 16% Total
7250 PSI @ 68°F (20°C): 9% Total

Tensile
F 152 Tensile Strength: 2610 PSI
