Phelps Compressed Gasket Material

Style 7010 - Compressed Aramid Fibre Blend With Buna-N Nitrile Binder

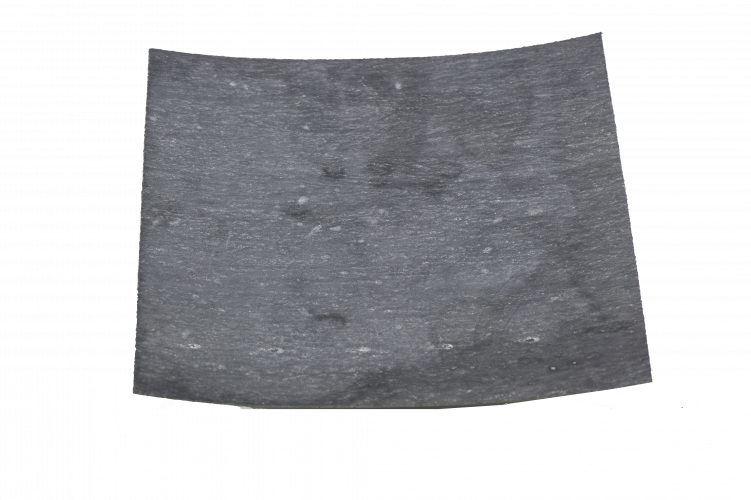

Phelps Style 7010 is a dense Compressed Gasket Sheet reinforced with an Aramid fiber blend with a Nitrile rubber binder. This sheet has a special high temperature anti-stick coating applied to both sides. Our material is engineered for super heated steam, thermal cycling, boilers, heat exchangers and is recommended for sealing gases, fuels, oils and refrigerants. This material’s high tensile strength gives it excellent resistance to hot creep relaxation at elevated gasket stress loads and has very good torque retention.

For assistance chosing the right material for your application please call us @ 1-800-876-SEAL, or add notes after clicking on "Request a Quote"
Phelps Style 7010 Sheet - Compressed Aramid Fiber Blend With Buna-N Nitrile Binder
CUSTOMIZE AND SEND REQUEST
Pressure
2000 PSI
Temperature
1000°F Maximum | 700°Continuous | 600° Steam
Applications

For sealing gases, fuels, oils and refrigerants
Resistance to hot creep relaxation at elevated gasket stress loads
Flange gaskets for super heated steam, thermal cycling, boilers, heat exchangers

Specifications

ASTM F 104 Tests (1/32" Thick)

F 38 B Creep Relaxation
22 Hrs @ 212°F (100°C): 17.9%
22 Hrs @ 392°F (200°C): 28.4%

F 146 Thickness Increase
Oil #3, 5 Hrs @ 300°F: < 5%
Fuel B, 5 Hrs @ 73°F: < 5%

F 36A
Compressibility 5000 PSI Gasket Load: 8.5% +/- 1.5%
Recovery: 55%

DIN 3535 Part 6 Gas Leak Rate
Nitrogen @ 580 PSI/Gasket Load 4640 PSI: .05 cc/min

DIN 52913 Stress Relaxation @ 7250 PSI (50 MPA)
16 Hrs @ 347°F (175°C): > 5510 PSI (38 MPA)
16 Hrs @ 572°F (300°C): > 4350 PSI (30 MPA)

Hot Compression Test (1/16" Thickness Used For Testing)
7250 PSI @ 572°F (300°C): 16% Total
7250 PSI @ 68°F (20°C): 9% Total

Tensile
F 152 Tensile Strength: 2610 PSI
Composition
Fiber: Aramid Blend | Binder Nitrile
PXT Values
For 1/16" Thickness: 700,000 | For 3/32" Thickness: 360,000
pH
2-12
