Jacketed Gaskets

Style 9322 - Double Jacketed, Double Shell

Phelps Style 9322, a double-jacketed gasket with additional shell offers greater strength and rigidity to withstand higher compressive loads common in high pressure applications. Norminal gasket thickness is 1/8”, and the most popular material for this style is Copper or Stainless Steel.

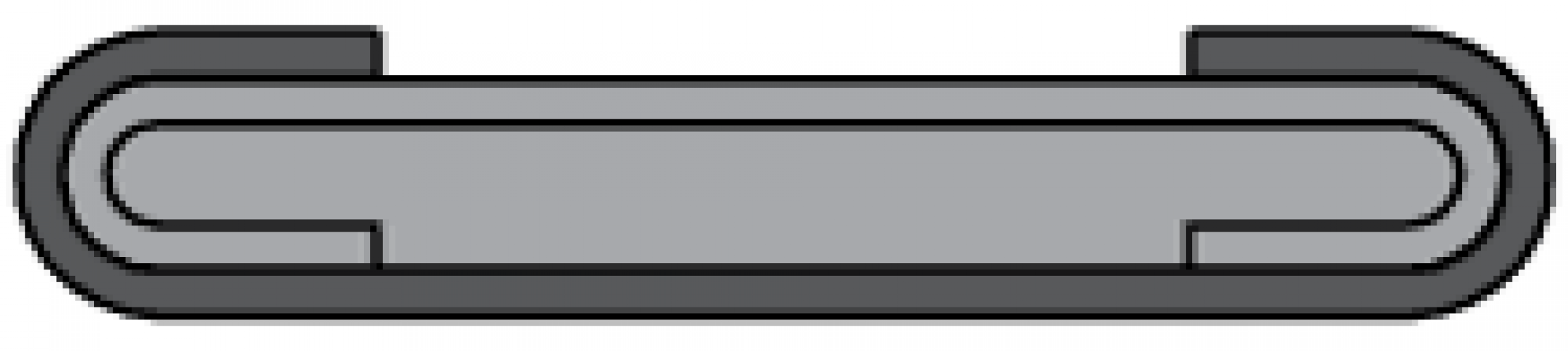

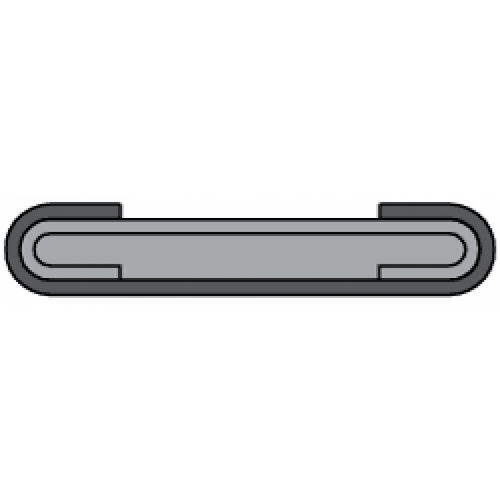

Phelps Style 9322 - Double Jacketed-Double Shell Metal Gasket
CUSTOMIZE AND SEND REQUEST
Applications

High pressure boilers, compressors, pumps, and diesel and gasoline engines
High pressure heat exchangers, valve bonnets, vacuum lines, and autoclaves
