Frenzelit Compressed Gasket Sheet

Style 7075 - NOVATEC 825F Engineered Graphite

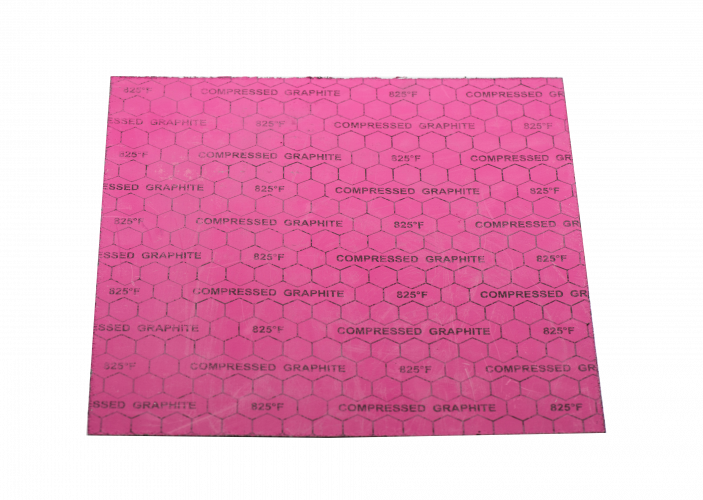

NOVATEC 825F compressed gasket sheet made with 75% pure  graphite. It is easily identified by the cranberry colored "easy release" non-stick coating. This material's 45% compressibility allows for better sealing for those less than perfect flanges. This material does not cold flow when compressed with excessive torque. It likes stress and performs its best when compressed to 5000 PSI and beyond. This is an excellent steam sheet that works best in flanges.

Phelps Style 7075 - NOVATEC  825F Engineered Graphite Sheet
CUSTOMIZE AND SEND REQUEST
Pressure
1500 PSI
Temperature
825°F/441°C
Applications

An excellent steam sheet that works best in flanges
High temperature sealing applications

Specifications

ASTM F 104 (Tests with 1/32" Thickness)

  F 38 B Creep Relaxation
     22 Hrs @ 212°F (100°C): 15%
     22 Hrs @ 392°F (200°C): 35%

  F 37 A Sealability
     Fuel A @ 14.5 PSI/Gasket Load 1000 PSI: 0.25 ml/hr

  F 37 B Sealability
     Fuel A @ 9.8 PSI/Gasket Load 500 PSI: 0.5 ml/hr
    Nitrogen @ 30 PSI/Gasket Load 3000 PSI: 0.1 ml/min

  F 146 Thickness Increase
     Oil #3, 5 Hrs @ 300°F: < 3%
    Fuel B, 5 Hrs @ 73°F: < 4%

  F 36 A Compressibility
     @ 5000 PSI Gasket Load: 45%
     Recovery: 10%

  DIN 3535 Part 6 Gas Permeability
     Nitrogen @ 580 PSI/Gasket Load 4640 PSI: 2 cc/min

  DIN 52913 Stress Relaxation @ 7250 PSI
     16 Hrs @ 347°F: Stress Retained > 6500 PSI
    16 Hrs @ 572°F: Stress Retained > 5000 PSI

  DIN 3754 48 Hrs @ 75°F Thickness Increase
     H2S04 Sulfuric Acid 65% Concentration: 7%
    NaOH Sodium Hydroxide 25% Concentration: 3%

Tensile
F 152: 600 PSI
Composition
Graphite
PXT Values
For 1/16" Thickness: 350,000 | For 3/32" Thickness: 210,000
pH
2-14
Color
Cranberry
