Flax & Ramie Packing

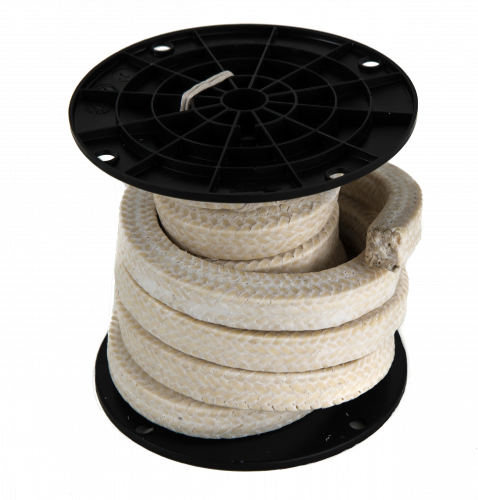

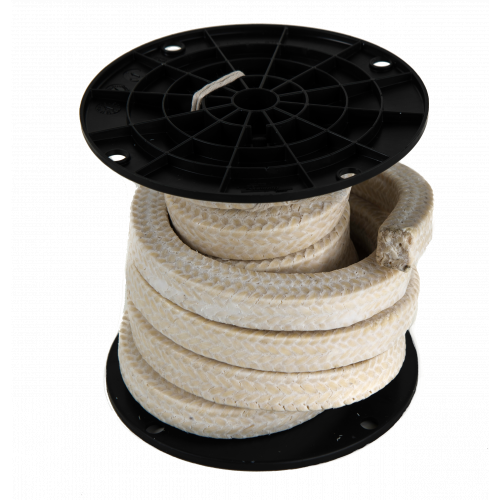

Style 3010 - Ramie / PTFE / Centerlock® (PTFE suspensoid and special marine lubricant)

Phelps Style 3010 is a Centerlock® braided from the finest Ramie Fiber. This compression packing is thoroughly impregnated with PTFE suspensoid and our special marine lubricant. This combination of construction and material provides the ultimate packing for marine rudder post, stabilizer and stern gland service, and makes it an indensible product for water pumping stations, wate water treatment facilities, pulp and paper industry, and the marine industry

Phelps Style 3010 - Ramie PTFE Braided Compression Packing with PTFE Suspensoid, Marine Braided Packing
CUSTOMIZE AND SEND REQUEST
pH
4-12
Pressure
Rotating Pumps: 250 PSI | Reciprocating Pumps: 900 | Valves: 1500
Temperature
260oF/127oC
FPM
1960
Composition
Ramie fiber
Lubricant
PTFE suspensoid and special marine lubricant
Applications

Phelps Style 3010 is designed for marine applications

Equipment:

  • Hydraulic rams, stern tubes, and valves
  • Centrifugal, rotary and reciprocating pumps, valves
  • Marine rudder post, bilge pumps, stabilizer, and stern gland service
  • Water pumping stations, pulp and paper industry
Max Size
2"
Construction
Centerlock®
Advantages
Combines a hard-wearing Ramie fiber with optimum lubricity in the most durable construction.
PTFE suspensoid treatment provides superior shaft protection.
Compatible Environment
Sea water, brines, sludges, slurries, and waste water
Water, cold water and cold oil
Competitor Equivalent
American Braiding: Style 345
Chemstar: Style 525T
Chesterton: Style 329
Garlock: Style 5413
John Crane: Style 867
Palmetto: Style 1613
Teadit: Style 2421
Utex: Style 201, 206
